Floor Screed Thickness: UK Minimum Depths & Installation Guide
Getting your floor screed thickness right prevents structural failure, cracking, and poorly performing underfloor heating. Minimum floor screed thickness ranges from 25mm for bonded sand and cement to 45mm for flowing liquid screed over underfloor heating and 65mm – 75mm for traditional floating screed.
Substrate type, load requirements, and floor finishes will determine the exact depth that you need. The table below outlines British Standard (BS 8204) screed depth benchmarks for your build.
Minimum Floor Screed Thickness Table (BS 8204)
Screed Type | Bonded (To Concrete Slab) | Unbonded (Over Membrane) | Floating (Over Acoustic/Thermal Insulation) | Over Underfloor Heating (UFH) |
Flowing Liquid Screed (Anhydrite) | 20mm – 25mm | 30mm | 35mm (Domestic) / 40mm (Commercial) | 45mm (Min. 25–30mm cover above pipes) |
Cementitious Flowing Screed | 25mm | 30mm | 40mm | 45mm – 50mm (Min. 30mm cover above pipes) |
Traditional Sand & Cement (1:3 / 1:4) | 25mm – 40mm | 50mm | 65mm (Domestic) / 75mm (Commercial) | 65mm – 75mm (Min. 35–40mm cover above pipes) |
Ultra-Thin Levelling Compounds | 3mm – 15mm | N/A | N/A | Specialist low-profile systems only |
Note – For heavy commercial traffic or point loads exceeding 3.0 kN/m², increase floating screed depths by a minimum of 10mm–15mm.

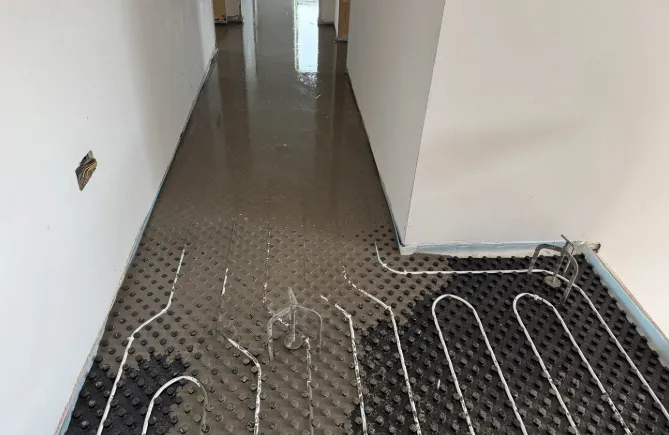

Underfloor Heating – Total Screed Depth vs Pipe Cover
When you’re installing underfloor heating, measure the depth of your screed from the top of the pipework, not just the insulation base.
Traditional sand and cement screed needs at least 35mm to 40mm of screed above the pipes (resulting in a 65mm–75mm total bed). The resulting mass creates thermal lag where the heating system takes hours to warm the room and hours to cool down.
Liquid [Thermal Screed] compacts fully around pipework with no air pockets, needing only 25mm to 30mm of cover over the top of pipes (a total bed depth of 45mm–50mm).
Here’s the practical result:
- Faster heat transfer – Thinner screed reacts twice as fast to thermostat changes.
- Lower energy bills – Reduced water flow temperatures in the pipes.
- Retrofit-friendly – Saves 20mm–30mm of vertical height for door thresholds and skirting in renovations.
- Reduced Weight – At 45mm total depth, liquid screed exerts roughly 90kg/m² on the subfloor, compared to 150kg/m² for a 70mm sand and cement bed.
Inadequate pipe coverage leads to floor cracking, hot spots, and crushed pipework under the loads. Always pressure-test heating pipes before starting the pour and maintain pressure while you’re screeding.
Choosing the Right Substrate Build
If your screed cracks, the problem can almost always be traced back to a mismatch between the screed depth and the subfloor type. Here’s a quick guide to getting the pairing right:
- Bonded Applications (Minimum 25mm) – These are best for low-profile commercial spaces where the floor height is constrained. Surface prep is important; dust, laitance, or oil will break the bond and cause hollow spots.
- Unbonded Applications (Minimum 30mm for Liquid, 50mm for Traditional) – Used when the subfloor is damp, contaminated, or subject to slight thermal movement. Membranes must be overlapped by 100mm and taped securely.
- Floating Applications (Minimum 35mm for Liquid, 65mm for Traditional) – The standard for insulated ground floors. Edges must be lined with 8mm–10mm perimeter expansion foam to allow thermal expansion and stop acoustic flanking.
Screed Depth and Drying Schedules
Flooring cannot be laid until the screed reaches the correct moisture level: 75% Relative Humidity (RH) / 0.5% moisture content for non-breathable finishes like vinyl and LVT.
Standard 45mm Liquid Screed
- Walkable in 24–48 hours
- Light site traffic in 3 days
- Fully dry in roughly 40–50 days (or 21–28 days with active UFH force-drying).
Standard 70mm Sand and Cement
- Walkable in 7 days
- 70–100+ days to dry completely (1mm/day for the first 50mm)
- Dries significantly more slowly after 50mm
Rapid Drying Screeds
If you’re working to a tight deadline switch to a rapid-curing cementitious screed which can accept floor tiles or wood flooring within 3 to 7 days.
Floor Screed Thickness FAQs
Here’s where we offer trade guidance on reinforcement, minimum pipe encapsulation, and drying calculations.
No, not usually. Flowing screeds achieve C25 to C30 compressive strength and have high flexural strength naturally, so there’s no need for steel mesh. Reinforcement is only really necessary over timber substrates, acoustic batten systems, or in commercial units carrying heavy industrial plant.
The standard minimum is 25mm of liquid screed above the highest point of the pipe crown (we recommend 30mm to absorb slight variations in insulation levels). Traditional sand and cement needs at least 35mm to 40mm of cover over the pipe in order to avoid thermal cracking.
Cold air, high humidity, and closed buildings reduce the rate of evaporation. Once the initial 48-hour curing window passes, open some windows or use commercial dehumidifiers. For pours deeper than 40mm, remember that drying times double to 2 days per millimetre for every millimetre above 40mm.
Not as an unbonded or floating layer at thin profiles. For bonded screeds, loose tiles and bitumen must be mechanically ground back or sealed with an epoxy damp-proof barrier and sand-blinded key before applying a bonded screed or high-strength levelling compound at a minimum 25mm depth.
