Maximise floor heights in your renovation with a minimal build-up
Retrofit underfloor heating (UFH) is a sought-after upgrade for extensions, and older properties, offering comfort and energy efficiency. But what if you have limited floor-to-ceiling height to deal with?
At Capital Screeding, we understand this challenge. We work across London, Essex, and Kent, specialising in UFH installations where space is at a premium. In this blog post, we’ll explore how levelling compounds can be the key to achieving your underfloor heating installation without sacrificing precious headroom.
Why Floor Height Matters in Retrofit Underfloor Heating
In older properties and self-builds, maintaining adequate headroom is essential for a comfortable and functional living space.
Here’s why:
- Building Regulations – There are minimum ceiling height requirements in building regulations. Adding UFH without careful planning can result in non-compliance.
- Doorways and Staircases – Raising floor levels can impact door clearances and staircase heights, potentially requiring costly adjustments.
- Aesthetics and Proportions – Even a small reduction in ceiling height can make a room feel cramped and disproportionate.
- Existing Fixtures – Consider skirting boards, radiators, and any built-in furniture. These may need adjustments or replacements if the floor level is significantly raised.
When retrofitting UFH, the combined height of the insulation, heating pipes, and screed can significantly raise the floor level. This is why the choice of screed is critical.
Underfloor Heating Solutions – Finding the Right Fit for Retrofit
When retrofitting underfloor heating, it’s essential to create an even heat distribution across your floor. This is achieved through installing a layer of material (usually screed) above the heating pipes, which acts as a thermal conductor. Here are some of the most common solutions:

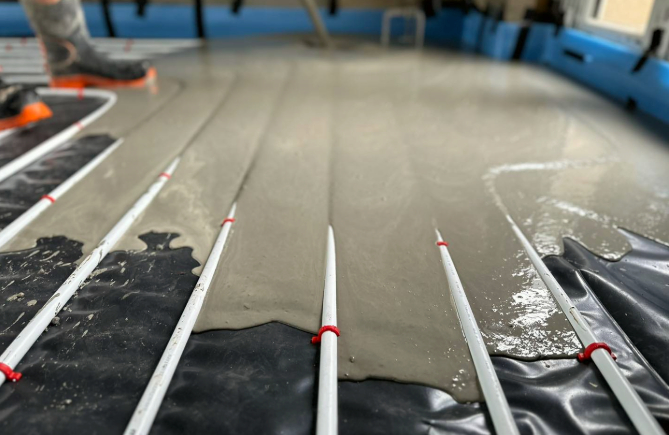

Traditional Screed – Tried-and-Tested
Traditional sand and cement screed is a long-standing method for UFH. However, it typically requires a thick layer (around 75mm) to prevent cracking. This thickness can significantly raise floor levels, which might not be suitable for projects with limited headroom. Additionally, traditional screed has a long curing time, impacting project timelines.
Liquid Screed – Faster and Thinner
Liquid screeds for underfloor heating offer several advantages over traditional screed. They can be applied thinner (typically 30-45mm), dry faster, and offer better thermal conductivity, resulting in quicker heat-up times. However, liquid screeds may still add a considerable height to your floor.
Backing Boards – A Lightweight Option for Timber Floors
For timber subfloors, insulated backing boards with pre-grooved channels for UFH pipes are a popular choice. These boards are lightweight and often used with aluminium spreader plates to distribute heat.
Levelling Compound – The Optimal Solution for Limited Headroom
Levelling compounds provide a compelling solution for UFH retrofits, especially where maintaining existing floor heights is crucial. These self-levelling materials can be applied in very thin layers (as little as 10mm over the pipes) while still ensuring efficient heat transfer. This makes them ideal for renovations with limited headroom, allowing you to enjoy the comfort of UFH without compromising on floor height.

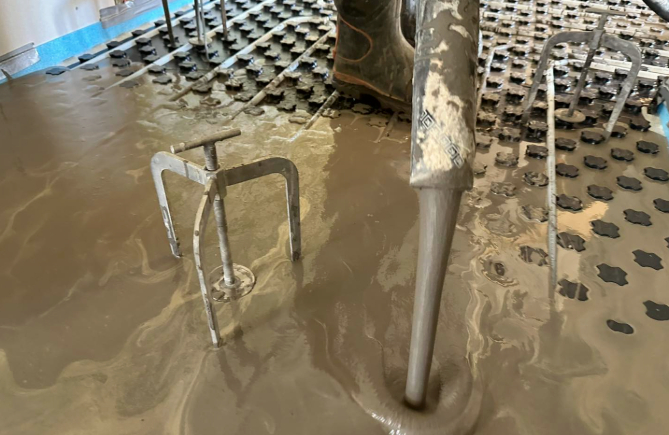

Retrofit Underfloor Heating? Choose Levelling Compound
What exactly is a levelling compound, and why is it so beneficial for underfloor heating retrofits? These self-levelling materials are used to create a smooth and level surface before laying a floor finish. They are typically made from a blend of cement, aggregates, and additives that provide self-levelling properties.
Here’s why levelling compounds are a game-changer for underfloor heating retrofits:
- Minimal Thickness – Levelling compounds can be applied in very thin layers, often as little as 10mm over the UFH pipes. This minimises the increase in floor height, making them ideal for renovations with limited headroom.
- Excellent Thermal Conductivity – Levelling compounds are designed to conduct heat efficiently, ensuring the very best performance from your underfloor heating system. This means faster heat-up times and even heat distribution across the floor.
- Fast Drying Times – Compared to traditional screeds, levelling compounds dry much faster, allowing you to proceed with the floor finishing sooner and reducing project timelines.
- Versatility – Levelling compounds can be used with various types of UFH systems, including both electric and wet systems.
- Strong and Long-Lasting – Our domestic levelling compounds are C25+ rated for strength and durability.
By choosing a levelling compound for your UFH retrofit, you can enjoy the comfort and efficiency of underfloor heating without the constraints of traditional methods. This makes it a particularly attractive option for older properties, renovations, and self-builds where maintaining original floor heights is a priority.
Any Drawbacks to Using Levelling Compound?
While levelling compounds offer significant advantages for retrofit underfloor heating, you also need to know about any potential drawbacks before deciding whether or not to use it.
The primary consideration is the need for professional installation. Levelling compounds require specialist equipment and expertise for proper application. Here’s why:
- Fast Setting Time – Once mixed, levelling compound has a limited working time (around 15 minutes). This requires quick and efficient application to achieve a smooth and level finish.
- Pumping Equipment – Levelling compound is typically pumped into place using specialist equipment to ensure even distribution.
- Technical Expertise – Achieving a perfectly level surface and ensuring proper coverage over UFH pipes requires skill and experience.
Capital Screeding – Your Installation Partner
At Capital Screeding, we have the expertise and equipment to handle your levelling compound installation with precision and efficiency. Our team is experienced in working with various types of levelling compounds and UFH systems, ensuring an efficient and successful installation.
By choosing Capital Screeding, you can avoid the potential pitfalls of DIY installation and ensure your UFH retrofit performs optimally for years to come. Want to know more? Give us a call today on 020 3369 3396.
