When Should You Specify an Ultra-Thin Screed for Your Project?
You specify an ultra-thin screed when the finished floor heights are tightly restricted, or when you need high-efficiency encapsulation of wet underfloor heating (UFH) pipes – without adding any unnecessary structural mass. Use an ultra-thin liquid screed – engineered to go down to a 12mm minimum bonded depth – in the following 3 project types:
Low-headroom retrofits and basement conversions where every millimetre of vertical clearance is critical.
Level-matching across existing thresholds or when pouring over historic tiles.
Mezzanine or timber-joist installations that demand a drastically reduced structural load.
Answering the question: when would you use ultra-thin screed? is easier when you’ve got experience on your side. Here at Capital Screeding, we specialise in supplying and fitting liquid screed solutions, across London, Essex and the South East.
Ultra-Thin Screed – Depth, Weight, and Cure Times Compared
Before you book a pump and coordinate a pour, you need to know exactly what each different screed classification requires. The following direct comparison gives you the physical performance differences between ultra-thin compounds and high-volume alternatives:
Screed Classification | Minimum Pour Depth | Average Structural Weight | Ready for Foot Traffic |
12mm (Bonded to substrate) | ~25–30 kg/m² | 24–48 Hours | |
40mm (Floating floor) | ~80–90 kg/m² | 24–48 Hours | |
65mm–75mm (Unbonded) | ~130–150 kg/m² | 7 Days |
Three Pitfalls That Will Ruin a Thin-Bed Pour
Pouring liquid screed at a fraction of standard depths demands a complete shift in your site preparation strategy. The reason being that you can no longer rely on the volume of material to mask poor preparation or subpar sub-bases. Be prepared for an installation that actively works to avoid the following risks.
1. Weak Sub-Bases and Point-Load Failures
Laying a thin-bed compound over standard Expanded Polystyrene (EPS) insulation boards will create a massive structural weakness. When a heavy point load hits the finished floor, the soft insulation will give way underneath, causing the thin screed crust to crack instantly under the pressure.
- Specify high-density bases – Insist on structural-grade XPS boards to guarantee a rigid, deflection-free platform.
- Secure the joints – Tape all your insulation joints so they’re completely airtight. This stops the liquid flowing compound from seeping underneath and floating the boards out of position during the pour.
- Check the levels – You need to know that the sub-base is entirely level before laying the insulation; uneven sub-bases create variable screed depths, which become weak spots.
2. Substrate Desiccation and Delamination
An ultra-thin screed depends on an unbreakable chemical bond with the underlying concrete floor. If that host slab is highly porous or covered in a layer of laitance, the fresh screed mix will fail to stick, and you’ll end up with a hollow, delaminated floor that hollows and cracks under foot traffic.
- Grind down the surface – Always mechanically grind the laitance off the slab.
- Maintain water levels – Flood the prepared surface with a dedicated subfloor primer to create a solid barrier that stops the dry subfloor from stealing the screed’s hydration water.
- Test the cure – Make sure that the priming coats have cured to a tacky or solid film, forming a permanent bridge between the old concrete and the new pour.

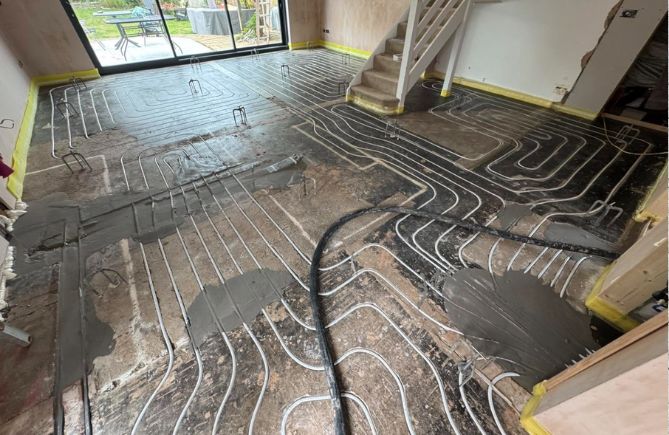

3. Thermal Stress and Micro-Cracking
When underfloor heating pipes sit directly inside a thin 15mm or 20mm layer, the temperature fluctuations are sharp and immediate. Without proper precautions, this can cause micro-cracking across the floor surface, tearing your final floor coverings apart from the inside out.
- Delay commissioning – Don’t run hot water through the UFH pipes until the screed has fully cured in ambient site conditions.
- Raise the temperature – Step up the UFH manifold temperature incrementally over a full week, avoiding sudden thermal spikes.
- Isolate structural boundaries – Run vertical expansion foam along every perimeter wall, door frame, and structural column to give the expanding slab room to move.
FAQs – Ultra-Thin Screed Installations
The following questions highlight the exact physical limits and performance metrics required for you to successfully coordinate your follow-on trades.
It depends on the type of thin screed pumped onto your site. Traditional calcium sulphate (anhydrite) compounds naturally push a weak, shiny layer of mineral salts – known as laitance – to the surface as they cure. This crust must be sanded off 7 to 11 days post-pour to allow primers to penetrate. If you’ve poured a cementitious ultra-thin screed, you can bypass this step.
For heated ultra-thin floors, you need to limit your undivided surface area to 40 square metres, or a maximum 8-linear-metre run, before breaking the slab with a dedicated movement joint. Because a shallow 15mm layer reacts instantly to temperature changes from the heating pipes, large, continuous areas face intense internal stress and will fracture if they’re not isolated into controlled zones.
No. Ultra-thin liquid compounds will follow the general profile of a flat subfloor at a consistent, minimal thickness. If your concrete base drops by 30mm in a far corner, a 12mm thin screed won’t be able to bridge that discrepancy safely. You need a rapid-setting structural mortar to fill the deep depressions and establish a level baseline before applying the ultra-thin screed.
It’ll be ready for light foot traffic within 24 to 48 hours under normal site conditions. Keep heavy site traffic completely off the slab for a minimum of 7 days until the screed achieves its full compressive strength.
Want to Get Your Subfloor Specification Right First Time?
Don’t risk structural cracking by guessing your material depths. If you are balancing tight headroom thresholds or a complex underfloor heating layout, talk to an expert.
Call the Capital Screeding team today and we’ll deliver a direct, technically accurate quote tailored to your project – 020 3369 3396.
